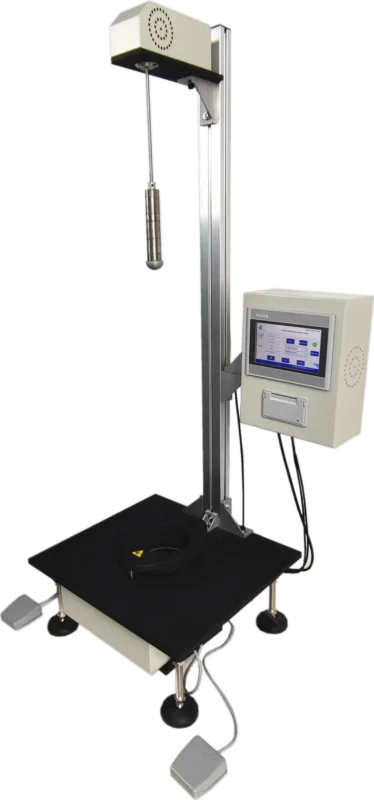

FDT-01 Falling Dart Impact Tester

The falling dart impact tester is a specialized instrument used to assess the impact strength of plastic films, composite materials, foils, and paper with a thickness of less than 1mm. This test evaluates the material’s resistance to impact by determining the energy required to cause failure under controlled conditions. It is widely used in packaging, food, pharmaceutical, and electronics industries to ensure product durability and performance.

Falling Dart Impact Tester for Plastic Film ASTM D1709
Falling Dart Impact Tester for Plastic Film ISO 7765-1

How the Free Falling Dart Test Works

The free falling dart test involves the following steps:

  1. A film sample is securely clamped in place.
  2. A dart with a pre-determined weight is suspended electromagnetically.
  3. The dart is released from a controlled height.
  4. The impact strength is recorded based on pass/fail results from multiple trials.
  5. The system calculates the material’s impact resistance in grams or joules.
Contact Us

Falling Dart Impact Tester

Test Method Method A or Method B (optional)
Test Range Method A: 50~2000g/
Method B: 300~2000g
Dart Diameter Method A: 38±1mm
Method B: 50±1mm
Impact Height 660mm/1500mm
Accuracy 0.1g (0.1J)
Clamp Pneumatic Clamp
Gas Supply 0.6 MPa Φ8 mm PU Tubing
Specimen Size > 150 mm x 150 mm
Power Supply AC 110~220V 50Hz
Dimension Method A: 500*450*1200 mm (LWH)
Method B: 500*450*2200 mm (LWH)

The FDT-01 Falling Dart Impact Tester from Cell Instruments is designed for precise and reliable impact resistance testing. Notable features include:

  • PLC control and HMI touch screen for stable and user-friendly operation.
  • Two test methods (A and B) for different material requirements.
  • Electromagnetic dart suspension for accurate and repeatable testing.
  • Pneumatic clamping to ensure sample stability during impact.
  • Automatic test result calculation to eliminate manual errors.
  • Embedded micro-printer and software integration for data output and analysis.

Dart Impact Test Methods & Standards

ASTM D1709 & ISO 7765-1

The dart impact test for plastic film follows internationally recognized standards such as ASTM D1709 and ISO 7765-1, ensuring consistent and accurate results. These standards outline the methodology for conducting a free falling dart test, where a weighted dart drops from a specified height onto a film sample, determining the minimum weight required to cause material failure.

Test Methods: Method A & Method B

Both ASTM D1709 and ISO 7765-1 define two distinct test methods:

  • Method A: Uses a dart with a 38mm diameter and an impact height of 660mm.
  • Method B: Uses a dart with a 50mm diameter and an impact height of 1500mm (optional in some test setups).

Applications of Falling Dart Impact Tester

The falling dart impact tester is widely used in industries such as:

Plastic Packaging

Plastic Packaging

Ensuring film durability in flexible packaging applications

Medical and Pharmaceutical Packaging

Medical and Pharmaceutical Packaging

Testing film strength for sterile and protective materials

Food Industry

Food Industry

Evaluating the resistance of plastic films used in food storage and transportation

Electronics and Consumer Goods

Electronics and Consumer Goods

Verifying impact resistance of protective films and coatings

Why Choose Impacttesting.net’s
FDT-01 Falling Dart Impact Tester?

Compliance with ASTM D1709 & ISO 7765-1 for accurate and standardized testing.
Advanced automation and ease of use through PLC and touchscreen interface.
Reliable results with high-precision impact measurement.
Customizable options for unique material testing needs.
