PIT-01 Pendulum Impact Tester

The pendulum impact tester measures a material’s ability to resist sudden impacts by recording the energy required to cause rupture or penetration. ASTM D3420 provides a standardized method to evaluate the impact resistance of plastic films, ensuring consistent quality control and material characterization. Commonly tested materials include plastic films, laminates, composites, foils, and paper used in packaging, automotive, and construction applications.

Pendulum Impact Tester - ASTM D3420 & Spencer Impact Test - Impact Testing

How the Pendulum Impact Tester Works

The PIT-01 Pendulum Impact Tester by Impacttesting.net is designed to provide precise and repeatable impact resistance measurements. The testing process involves:

  1. Specimen Preparation: A sample of uniform thickness and consistency is selected.
  2. Specimen Clamping: The film is secured in place using a pneumatic clamping system.
  3. Pendulum Release: The pendulum, equipped with an impact head, is automatically released from a predefined height.
  4. Impact Measurement: The energy absorbed by the material upon impact is recorded.
  5. Data Analysis: The results are displayed on a digital interface, with an optional microprinter for immediate reporting.

ASTM D3420 and Spencer Impact Test

ASTM D3420 – Test Method for Pendulum Impact Resistance of Plastic Film

ASTM D3420 specifies a method for determining the impact resistance of plastic films by measuring the energy required for a pendulum impactor to penetrate a test specimen. The test is designed to provide insights into a material’s dynamic tensile behavior under high-strain-rate conditions, making it essential for packaging material evaluation.

Key aspects of ASTM D3420 include:

Measurement of energy loss due to the impact of a pendulum probe on the test specimen.
Two procedures (A and B) differing in sample size, with Procedure B often referred to as the Spencer Impact Test.
Importance in applications requiring high-impact resistance, such as food and pharmaceutical packaging films.

Spencer Impact Test: A Specialized Variation

The Spencer Impact Test is a variant of ASTM D3420, typically associated with Procedure B, which uses an 89-mm diameter specimen clamp. This method is widely used for evaluating films used in flexible packaging, ensuring that materials can withstand mechanical stress without tearing or puncturing.

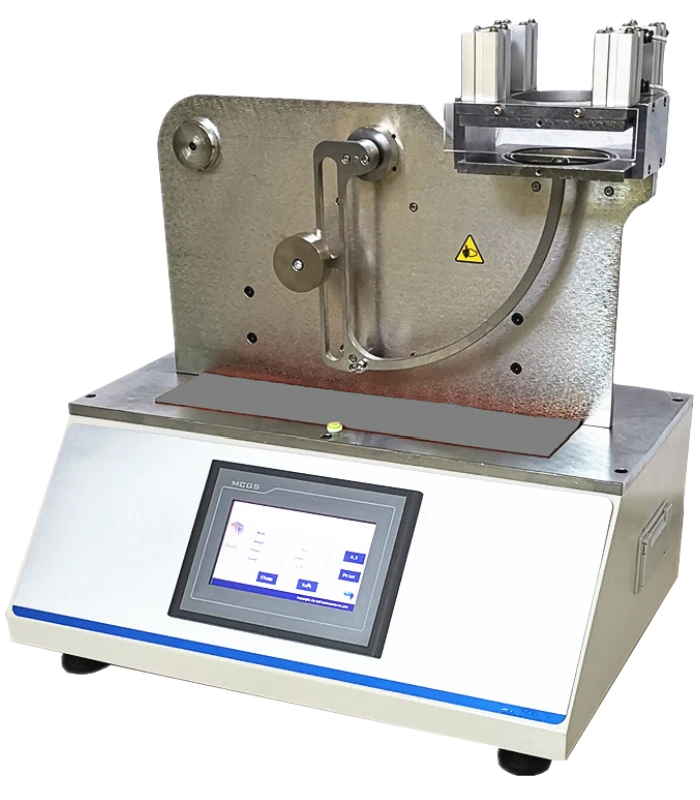

PIT-01 Pendulum Impact Tester

Key Features:

Cell Instruments’ PIT-01 Pendulum Impact Tester offers advanced features for high-precision material testing:

  • PLC Control & HMI Touch Screen for easy operation.
  • Pneumatic Specimen Clamping to ensure stable positioning.
  • Automatic Pendulum Release for consistent impact testing.
  • Data Auto-Statistics & Microprinter for efficient result documentation.
  • Precise Angle Measurement for accurate energy calculations.
  • RS232 Port & Software (Optional) for advanced data analysis.

Technical Specifications:

Impact Energy 1 J, 2 J, 3 J
Resolution  0.001 J
Impact Head Size Ф25.4, Ф19, Ф12.7 mm
Specimen Clamp Pneumatic Clamp
Clamp Diameter Ф89 mm, Ф60 mm
Gas Supply 0.6 MPa Φ6 mm PU Tubing
Specimen Size 100*100 mm or Ф100 mm
Power Supply  AC 110~220V 50Hz

Why Choose Impacttesting.net’s
PIT-01 Pendulum Impact Tester

By integrating pendulum impact testing into your quality control processes, you can enhance product durability and compliance with industry standards. Impacttesting.net provides state-of-the-art solutions to meet your material testing needs.
