FDT-01 낙하 다트 충격 시험기

그리고 falling dart impact tester is a specialized instrument used to assess the impact strength of plastic films, composite materials, foils, and paper with a thickness of less than 1mm. This test evaluates the material’s resistance to impact by determining the energy required to cause failure under controlled conditions. It is widely used in packaging, food, pharmaceutical, and electronics industries to ensure product durability and performance.

문의하기

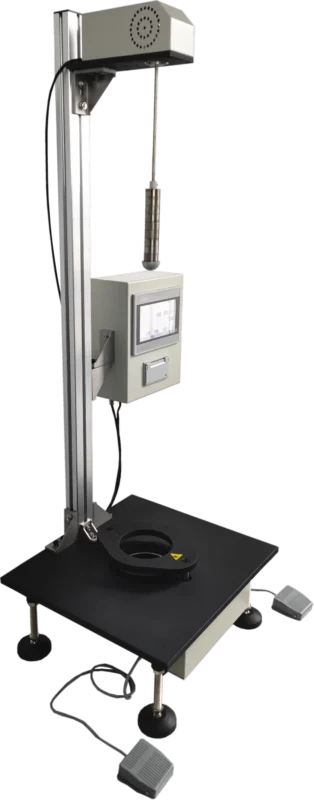

플라스틱 필름용 낙하 다트 충격 시험기

How the Free Falling Dart Test Works

그리고 free falling dart test involves the following steps:

  1. A film sample is securely clamped in place.
  2. A dart with a pre-determined weight is suspended electromagnetically.
  3. The dart is released from a controlled height.
  4. The impact strength is recorded based on pass/fail results from multiple trials.
  5. The system calculates the material’s impact resistance in grams or joules.
문의하기

Falling Dart Impact Tester

Test Method MethodA or Method B (optional)
Test RangeMethod A: 50~2000g/
Method B: 300~2000g
Dart DiameterMethod A: 38±1mm
Method B: 50±1mm
Impact Height660mm/1500mm
Accuracy0.1g (0.1J)
Clamp공압 클램프
가스 공급0.6 MPa Φ8 mm PU Tubing
표본 크기> 150 mm x 150 mm
전원 공급 장치AC 110~220V 50Hz
DimensionMethod A: 500*450*1200 mm (LWH)
Method B: 500*450*2200 mm (LWH)

The FDT-01 Falling Dart Impact Tester from Cell Instruments is designed for precise and reliable impact resistance testing. Notable features include:

  • PLC control and HMI touch screen for stable and user-friendly operation.
  • Two test methods (A and B) for different material requirements.
  • Electromagnetic dart suspension for accurate and repeatable testing.
  • Pneumatic clamping to ensure sample stability during impact.
  • Automatic test result calculation to eliminate manual errors.
  • Embedded micro-printer and software integration for data output and analysis.

Dart Impact Test Methods & Standards

ASTM D1709 & ISO 7765-1

그리고 dart impact test for plastic film follows internationally recognized standards such as ASTM D1709 그리고 ISO 7765-1, ensuring consistent and accurate results. These standards outline the methodology for conducting a free falling dart test, where a weighted dart drops from a specified height onto a film sample, determining the minimum weight required to cause material failure.

Test Methods: Method A & Method B

Both ASTM D1709 그리고 ISO 7765-1 define two distinct test methods:

  • Method A: Uses a dart with a 38mm diameter and an impact height of 660mm.

  • Method B: Uses a dart with a 50mm diameter and an impact height of 1500mm (optional in some test setups).

Applications of Falling Dart Impact Tester

그리고 falling dart impact tester is widely used in industries such as:

플라스틱 포장

플라스틱 포장

Ensuring film durability in flexible packaging applications

의료 및 제약 패키징

의료 및 제약 패키징

Testing film strength for sterile and protective materials

식품 산업

식품 산업

Evaluating the resistance of plastic films used in food storage and transportation

전자 제품 및 소비재

전자 제품 및 소비재

Verifying impact resistance of protective films and coatings

Impacttesting.net을 선택해야 하는 이유
FDT-01 Falling Dart Impact Tester?

Compliance with ASTM D1709 & ISO 7765-1 for accurate and standardized testing.
Advanced automation and ease of use through PLC and touchscreen interface.
Reliable results with high-precision impact measurement.
Customizable options for unique material testing needs.
